  • Kaseta podpodłogowa

UBDHB250 2V

Declaration of conformity

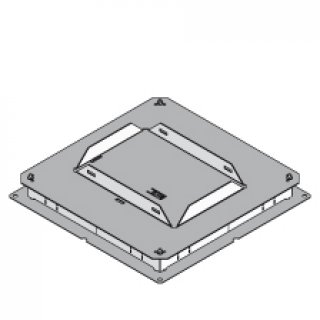

Hollow space floor box double, quadrangular

Hollow space floor box consisting of a Sendzimir hot-dip galvanized sheet steel box with all-round bendable side walls including grounding clamp for a subsonic noise free and height independent assembly. Usable as pull- and installation box, with one opening for insertion of a shuttering unit that will be replaced with a quadrangular plastic assembly unit during final assembly.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Name H[mm] Hmin [mm] B1[mm] B2[mm] L1[mm] L2[mm] E[mm] G[kg]
UBDHB250 28-185V
31
67
385
400
385
400
187 x 262
3,5
+
UBDHB250 38-185V
41
77
385
400
385
400
187 x 262
3,6
+
UBDHB250 48-185V
51
87
385
400
385
400
187 x 262
3,7
+
