  • Kaseta podpodłogowa

UBDHB350 3V

Declaration of conformity

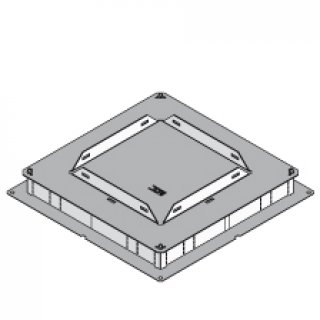

Hollow space floor box triple, quadrangular

Hollow space floor box consisting of a Sendzimir hot-dip galvanized sheet steel box with all-round bendable side walls including grounding clamp for a subsonic noise free and height independent assembly. Usable as pull- and installation box, with one opening for insertion of a shuttering unit that will be replaced with a quadrangular plastic or high-grade steel assembly unit during final assembly.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Name H[mm] Hmin [mm] B1[mm] B2[mm] L1[mm] L2[mm] E[mm] G[kg]
UBDHB350 28-259V
31
67
410
450
410
450
262 x 262
3,9
+
UBDHB350 38-259V
41
77
410
450
410
450
262 x 262
4
+
UBDHB350 48-259V
51
87
410
450
410
450
262 x 262
4,1
+
