Wire mesh cable tray cover

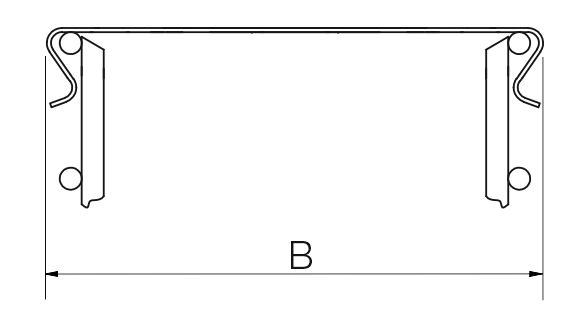

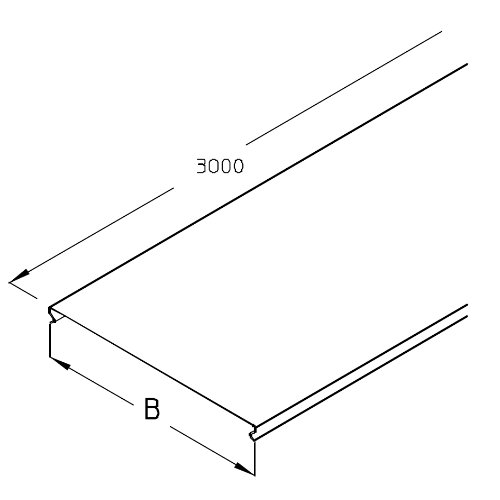

Wire-mesh cable tray cover, positive locking
GD
-
Karta Katalogowa GD_PL
pdf | 42.79 KB -
Data sheet GD_EN
pdf | 38.14 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Name | B[mm] | L[mm] | t[mm] | G[kg] | |
|---|---|---|---|---|---|
| GD 06S |
76
|
3000
|
1,00
|
2,65
|
|
| GD 10S |
116
|
3000
|
1,00
|
3,60
|
|
| GD 20S |
216
|
3000
|
1,00
|
6,00
|
|
| GD 30S |
316
|
3000
|
1,00
|
8,40
|
|
| GD 40S |
416
|
3000
|
1,00
|
10,80
|
|
| GD 50S |
516
|
3000
|
1,00
|
12,30
|
|
| GD 60S |
616
|
3000
|
1,00
|
15,60
|
Hot-dip galvanized, according to BS 729 (EN ISO 1461)
| Name | B[mm] | L[mm] | t[mm] | G[kg] | |
|---|---|---|---|---|---|
| GD 06F |
76
|
3000
|
1,00
|
2,80
|
|
| GD 10F |
116
|
3000
|
1,00
|
3,80
|
|
| GD 20F |
216
|
3000
|
1,00
|
6,30
|
|
| GD 30F |
316
|
3000
|
1,00
|
9,10
|
|
| GD 40F |
416
|
3000
|
1,00
|
11,80
|
|
| GD 50F |
516
|
3000
|
1,00
|
13,90
|
|
| GD 60F |
616
|
3000
|
1,00
|
17,80
|
Stainless steel, according to ASTM 304 / BS 304 S 3
| Name | B[mm] | L[mm] | t[mm] | G[kg] | |
|---|---|---|---|---|---|
| GD 06E |
76
|
3000
|
1,00
|
2,65
|
|
| GD 10E |
116
|
3000
|
1,00
|
3,60
|
|
| GD 20E |
216
|
3000
|
1,00
|
6,00
|
|
| GD 30E |
316
|
3000
|
1,00
|
8,40
|
|
| GD 40E |
416
|
3000
|
1,00
|
10,80
|
|
| GD 50E |
516
|
3000
|
1,00
|
12,30
|
|
| GD 60E |
616
|
3000
|
1,00
|
15,60
|
