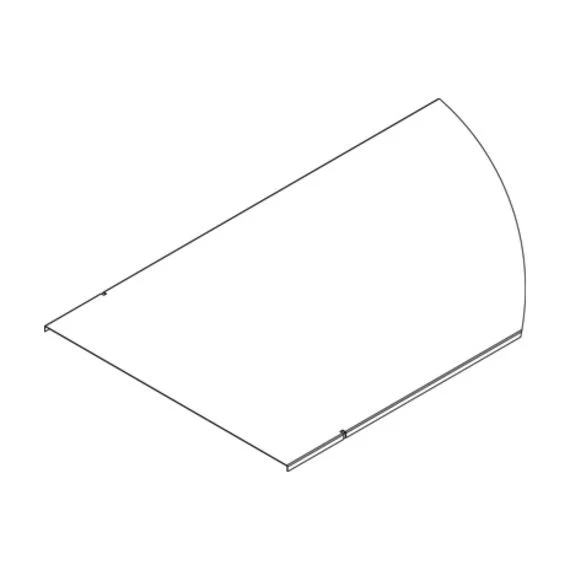

Pokrywa samonośnej drabinki / korytka.

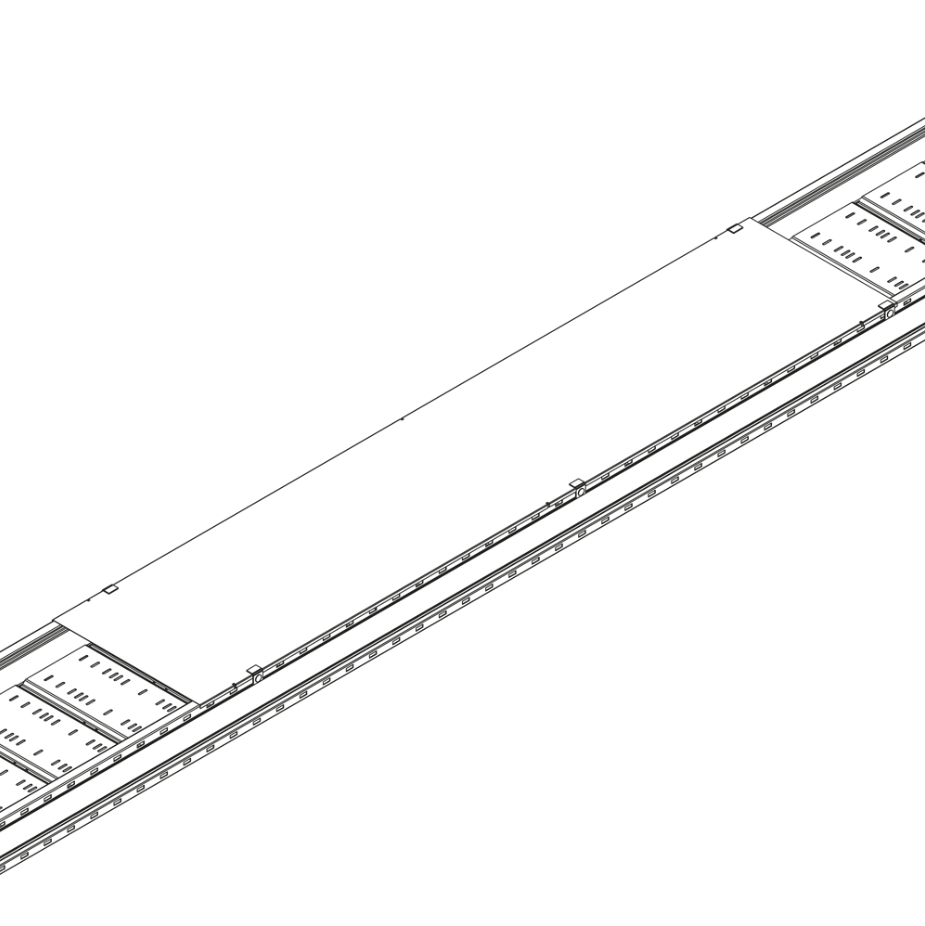

Pokrywa przystosowana do montażu na samonośnych korytkach / drabinkach kablowych serii WL / WLR.
WLD
-
Karta Katalogowa WLD_PL
pdf | 63.04 KB -
Data Sheet WLD_EN_
pdf | 59.8 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

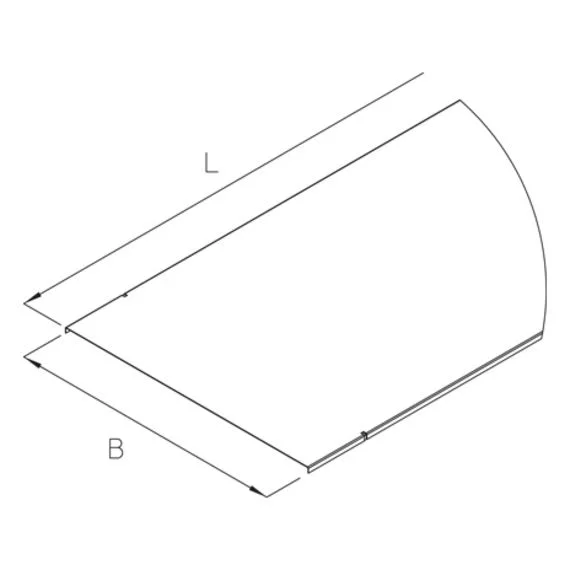

| Name | B[mm] | L[mm] | t[mm] | G[kg] | |
|---|---|---|---|---|---|
| WLD 20S |
237
|
3000
|
0,75
|
4,55
|
|
| WLD 30S |
337
|
3000
|
1,00
|
8,43
|
|
| WLD 40S |
437
|
3000
|
1,00
|
10,78
|
|
| WLD 50S |
537
|
3000
|
1,25
|
16,42
|
|
| WLD 60S |
637
|
3000
|
1,25
|
19,36
|
Hot-dip galvanized, according to BS 729 (EN ISO 1461)
| Name | B[mm] | L[mm] | t[mm] | G[kg] | |
|---|---|---|---|---|---|
| WLD 20F |
237
|
3000
|
0,75
|
4,87
|
|
| WLD 30F |
337
|
3000
|
1,00
|
9,02
|
|
| WLD 40F |
437
|
3000
|
1,00
|
11,54
|
|
| WLD 50F |
537
|
3000
|
1,25
|
17,57
|
|
| WLD 60F |
637
|
3000
|
1,25
|
20,72
|
