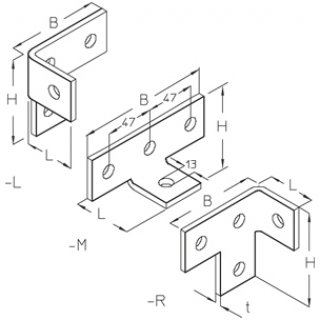

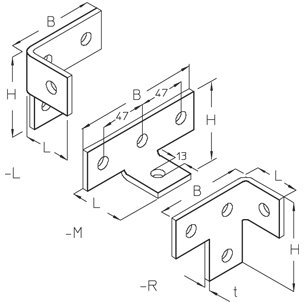

Corner connector left / center / right

Name	H[mm]	B[mm]	L[mm]	t[mm]	G[kg]
AVAW-L F	90	98	48	6	0,36	− +
AVAW-M F	51	136	52	6	0,36	− +
AVAW-R F	90	98	48	6	0,36	− +

Hexagon head bolt, DIN 933

Channel nut, A 41/ KHA 41/ KHAL 41

Channel spring nut, A 41
