Cable tray cover with bar lock
RDCR
-
Karta Katalogowa RDCR_PL
pdf | 69.55 KB -
Data Sheet RDCR_EN
pdf | 65.89 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

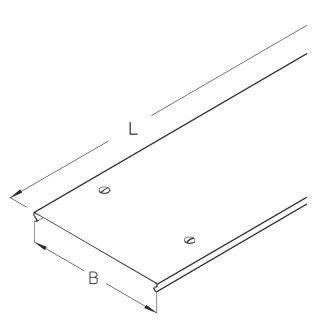

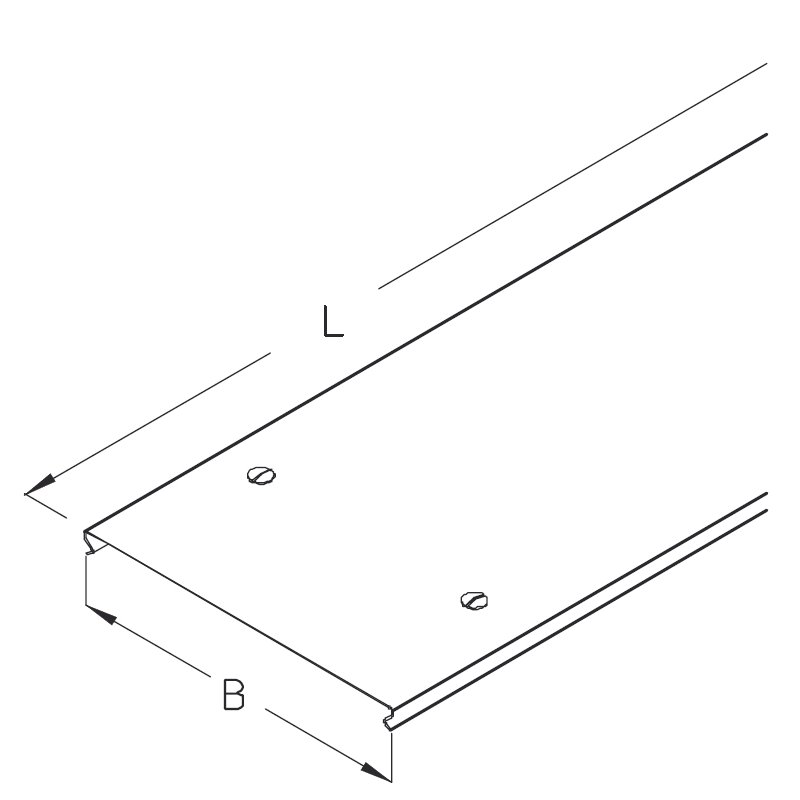

| Name | B[mm] | L[mm] | t[mm] | G[kg] | |
|---|---|---|---|---|---|

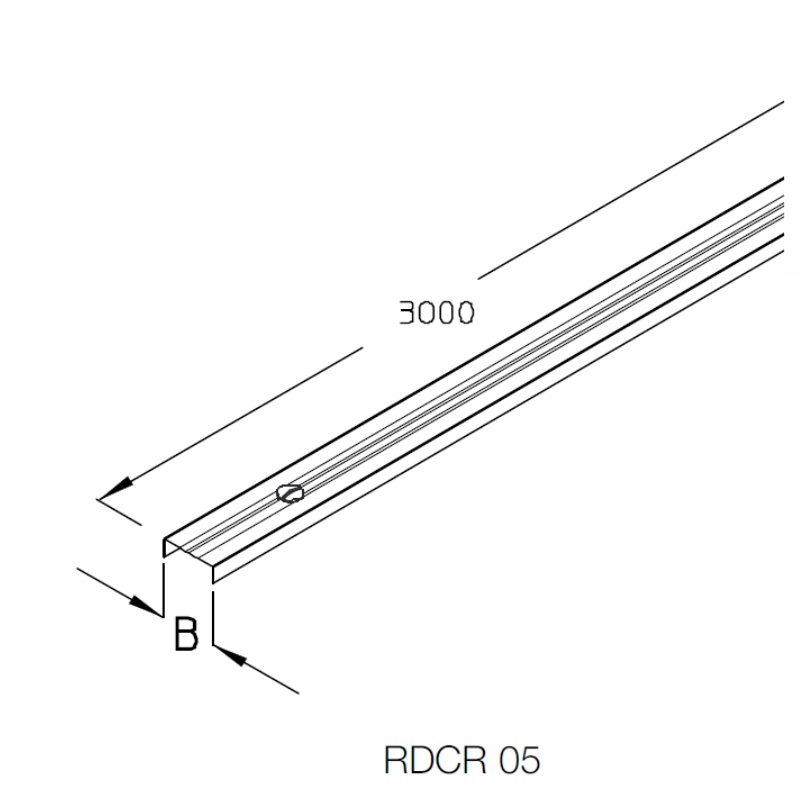

| RDCR 05S |
50
|
3000
|
0,55
|
1,03
|
|

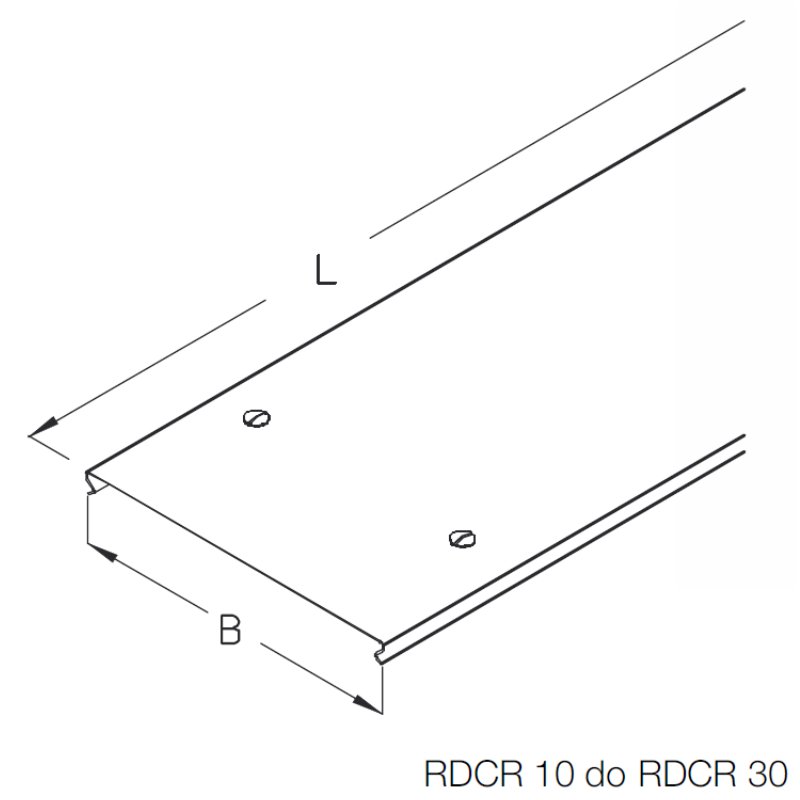

| RDCR 10S |
100
|
3000
|
0,55
|
1,79
|
|
| RDCR 15S |
150
|
3000
|
0,55
|
2,44
|
|
| RDCR 20S |
200
|
3000
|
0,55
|
3,09
|
|
| RDCR 30S |
300
|
3000
|
0,55
|
4,38
|
Stainless steel, according to ASTM 304 / BS 304 S 3
| Name | B[mm] | L[mm] | t[mm] | G[kg] | |
|---|---|---|---|---|---|
| RDCR 05E |
50
|
3000
|
0,55
|
1,04
|
|
| RDCR 10E |
100
|
3000
|
0,55
|
1,81
|
|
| RDCR 15E |
150
|
3000
|
0,55
|
2,46
|
|
| RDCR 20E |
200
|
3000
|
0,55
|
3,12
|
|
| RDCR 30E |
300
|
3000
|
0,55
|
4,42
|
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Name | B[mm] | L[mm] | t[mm] | G[kg] | |
|---|---|---|---|---|---|
| RDCR 05E4 |
50
|
3000
|
0,55
|
1,04
|
|
| RDCR 10E4 |
100
|
3000
|
0,55
|
1,81
|
|
| RDCR 15E4 |
150
|
3000
|
0,55
|
2,46
|
|
| RDCR 20E4 |
200
|
3000
|
0,55
|
3,12
|
|
| RDCR 30E4 |
300
|
3000
|
0,55
|
4,42
|
