R 85

Cable tray, not perforated, height=85 mm

Cable tray not perforated, head shape suitable for positive locking covers, certified including electrical conductivity according to DIN EN 61537

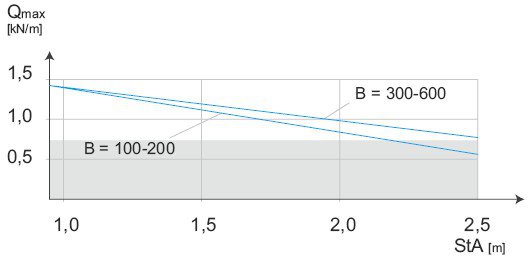

Name	H[mm]	B[mm]	L[mm]	t[mm]	A[cm2]	Qsk[kN/m]	G[kg]
R 85-10S	85	100	3000	0,75	81	0,12	5,5	− +
R 85-20S	85	200	3000	0,75	163	0,25	7,2	− +
R 85-30S	85	300	3000	0,88	246	0,37	10,5	− +
R 85-40S	85	400	3000	0,88	328	0,49	12,6	− +
R 85-50S	85	500	3000	1	411	0,62	16,7	− +
R 85-60S	85	600	3000	1	493	0,74	19	− +

Name	H[mm]	B[mm]	L[mm]	t[mm]	A[cm2]	Qsk[kN/m]	G[kg]
R 85-10F	85	100	3000	0,75	81	0,12	6,1	− +
R 85-20F	85	200	3000	0,75	163	0,25	8,1	− +
R 85-30F	85	300	3000	0,88	246	0,37	11,6	− +
R 85-40F	85	400	3000	0,88	328	0,49	13,9	− +
R 85-50F	85	500	3000	1	411	0,62	18,2	− +
R 85-60F	85	600	3000	1	493	0,74	20,8	− +
