RGC 42

Name: EL-PUK Sp. z o. o.
Address: Kościelna 15, Konstantynów Łódzki, 95-050, PL
Telephone: +48 42 211 88 01
Price range: PLN

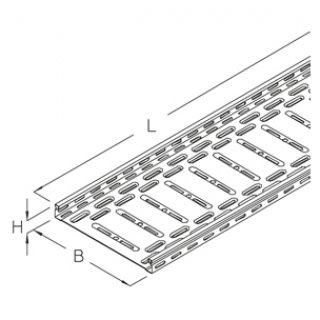

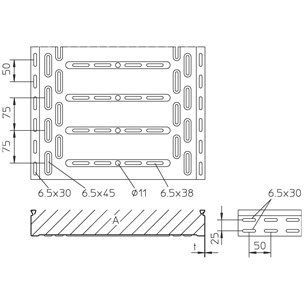

Cable tray, light, perforated, height=42 mm

Name	H[mm]	B[mm]	L[mm]	t[mm]	A[cm2]	Qsk[kN/m]	G[kg]
RGC 42-05S	42	50	3000	0,55	19	0,03	1,8	− +
RGC 42-10S	42	100	3000	0,55	39	0,07	2,3	− +
RGC 42-20S	42	200	3000	0,55	80	0,14	3,5	− +
RGC 42-30S	42	300	3000	0,55	120	0,21	4,7	− +

Name	H[mm]	B[mm]	L[mm]	t[mm]	A[cm2]	Qsk[kN/m]	G[kg]
RGC 42-05E	42	50	3000	0,55	19	0,03	1,8	− +
RGC 42-10E	42	100	3000	0,55	39	0,07	2,3	− +
RGC 42-20E	42	200	3000	0,55	80	0,14	3,5	− +
RGC 42-30E	42	300	3000	0,55	120	0,21	4,7	− +

Cable tray bend, height=42 mm

Cable tray bend, height=42 mm

Cable tray attachment corner, height=42 mm

Cable tray attachment branch-piece, height=42 mm

Cable tray branch-piece, height=42 mm

Cable tray crossover, height=42 mm

Cable tray vertical bend, height=42 mm

Cable tray reducer, height=42 mm

Cable tray closing panel, height=42 mm

Cable tray end-plate

Cable tray coupler, height=42 mm

Connection plate

Cable tray barrier strip, height=42 mm

Fixing set
