  • Korytka kablowe
korytka elektroinstalacyjne -RG35

RGS 35

Declaration of conformity

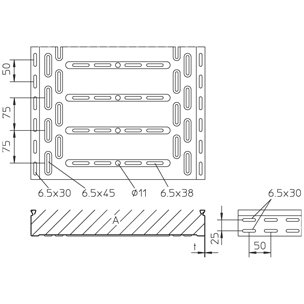

Cable tray, heavy, perforated, height=35 mm

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
RGS 35-05S
35
50
3000
1,5
17
0,03
4,6
− +
RGS 35-10S
35
100
3000
1,5
31
0,05
6,2
− +
RGS 35-20S
35
200
3000
1,5
63
0,1
9,6
− +
RGS 35-30S
35
300
3000
1,5
96
0,15
12,6
− +

Hot-dip galvanized, according to BS 729 (EN ISO 1461)

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
RGS 35-05F
35
50
3000
1,5
17
0,03
5,1
− +
RGS 35-10F
35
100
3000
1,5
31
0,05
7
− +
RGS 35-20F
35
200
3000
1,5
63
0,1
10,7
− +
RGS 35-30F
35
300
3000
1,5
96
0,15
14,4
− +

Stainless steel, according to ASTM 304 / BS 304 S 3

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
RGS 35-05E
35
50
3000
1,5
17
0,03
4,6
− +
RGS 35-10E
35
100
3000
1,5
31
0,05
6,2
− +
RGS 35-20E
35
200
3000
1,5
63
0,1
9,6
− +
RGS 35-30E
35
300
3000
1,5
96
0,15
12,9
− +
