  • Korytka kablowe
korytka elektryczne - RG35

RGO 35

Declaration of conformity

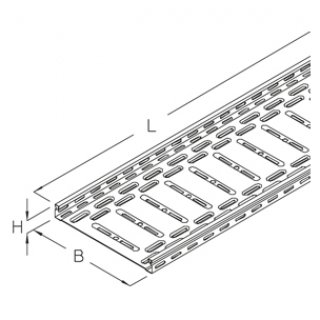

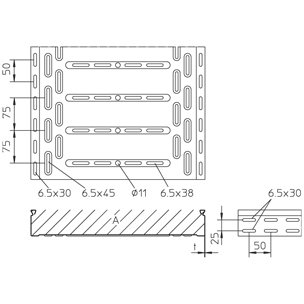

Cable tray, perforated, height=35 mm

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
RGO 35-05S
35
50
3000
1
17
0,03
3,1
− +
RGO 35-10S
35
100
3000
1
31
0,05
4,2
− +
RGO 35-20S
35
200
3000
1
63
0,1
6,5
− +
RGO 35-30S
35
300
3000
1
96
0,15
8,7
− +

Hot-dip galvanized, according to BS 729 (EN ISO 1461)

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
RGO 35-05F
35
50
3000
1
17
0,03
3,5
− +
RGO 35-10F
35
100
3000
1
31
0,05
4,7
− +
RGO 35-20F
35
200
3000
1
63
0,1
7,2
− +
RGO 35-30F
35
300
3000
1
96
0,15
9,7
− +

Stainless steel, according to ASTM 304 / BS 304 S 3

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
RGO 35-05E
35
50
3000
1
17
0,03
3,1
− +
RGO 35-10E
35
100
3000
1
31
0,05
4,2
− +
RGO 35-20E
35
200
3000
1
63
0,1
6,5
− +
RGO 35-30E
35
300
3000
1
96
0,15
8,7
− +
