R 35

Declaration of conformity

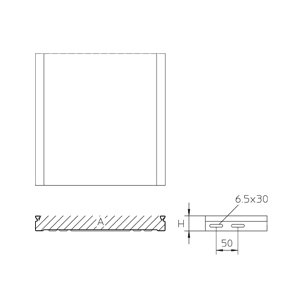

Cable tray, not perforated, height=35 mm

Cable tray not perforated, head shape suitable for positive locking covers, certified including electrical conductivity according to DIN EN 61537

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
R 35-05S
35
50
3000
0,75
17
0,03
2,6
− +
R 35-10S
35
100
3000
0,75
31
0,05
3,5
− +
R 35-20S
35
200
3000
0,75
63
0,1
5,3
− +
R 35-30S
35
300
3000
0,75
96
0,15
7,1
− +

Hot-dip galvanized, according to BS 729 (EN ISO 1461)

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
R 35-05F
35
50
3000
0,75
17
0,03
2,9
− +
R 35-10F
35
100
3000
0,75
31
0,05
3,9
− +
R 35-20F
35
200
3000
0,75
63
0,1
5,9
− +
R 35-30F
35
300
3000
0,75
96
0,15
8
− +

Stainless steel, according to ASTM 304 / BS 304 S 3

Name H[mm] B[mm] L[mm] t[mm] A[cm2] Qsk[kN/m] G[kg]
R 35-05E
35
50
3000
0,75
17
0,03
2,6
− +
R 35-10E
35
100
3000
0,75
31
0,05
3,5
− +
R 35-20E
35
200
3000
0,75
63
0,1
5,3
− +
R 35-30E
35
300
3000
0,75
96
0,15
7,1
− +
