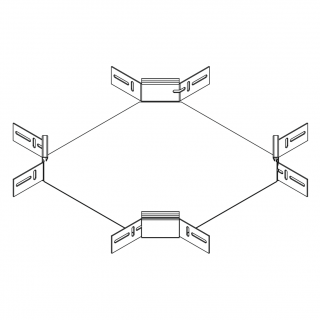

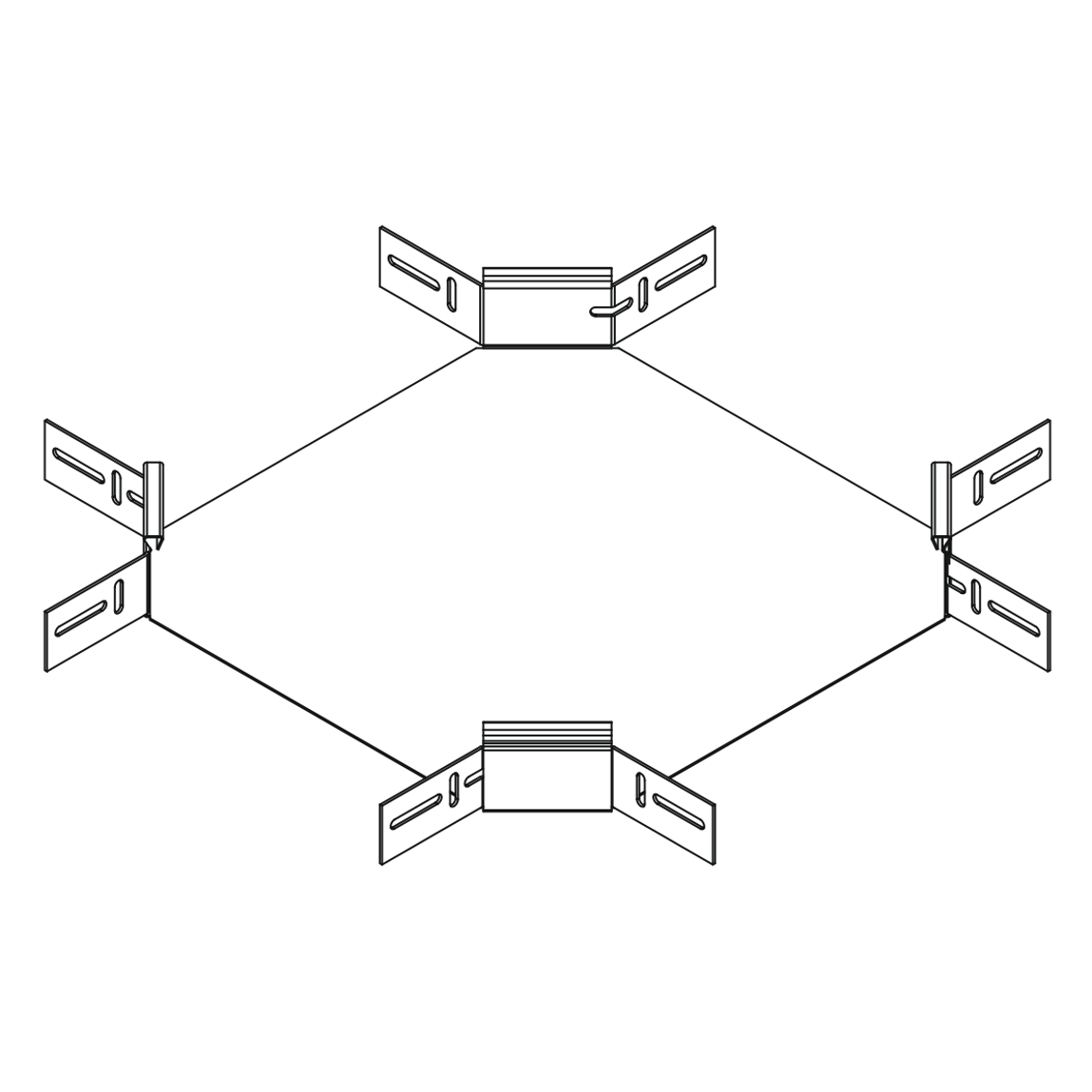

Skrzyżowanie korytka instalacyjnego, wysokość=60 mm.
Skrzyżowanie korytka instalacyjnego umożliwiające zmianę kierunku trasy kablowej. Skrzyżowanie posiada zintegrowane łączniki. W komplecie śruby i nakrętki montażowe.
RIK 60
-
Karta Katalogowa RIK 60_PL
pdf | 76.67 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

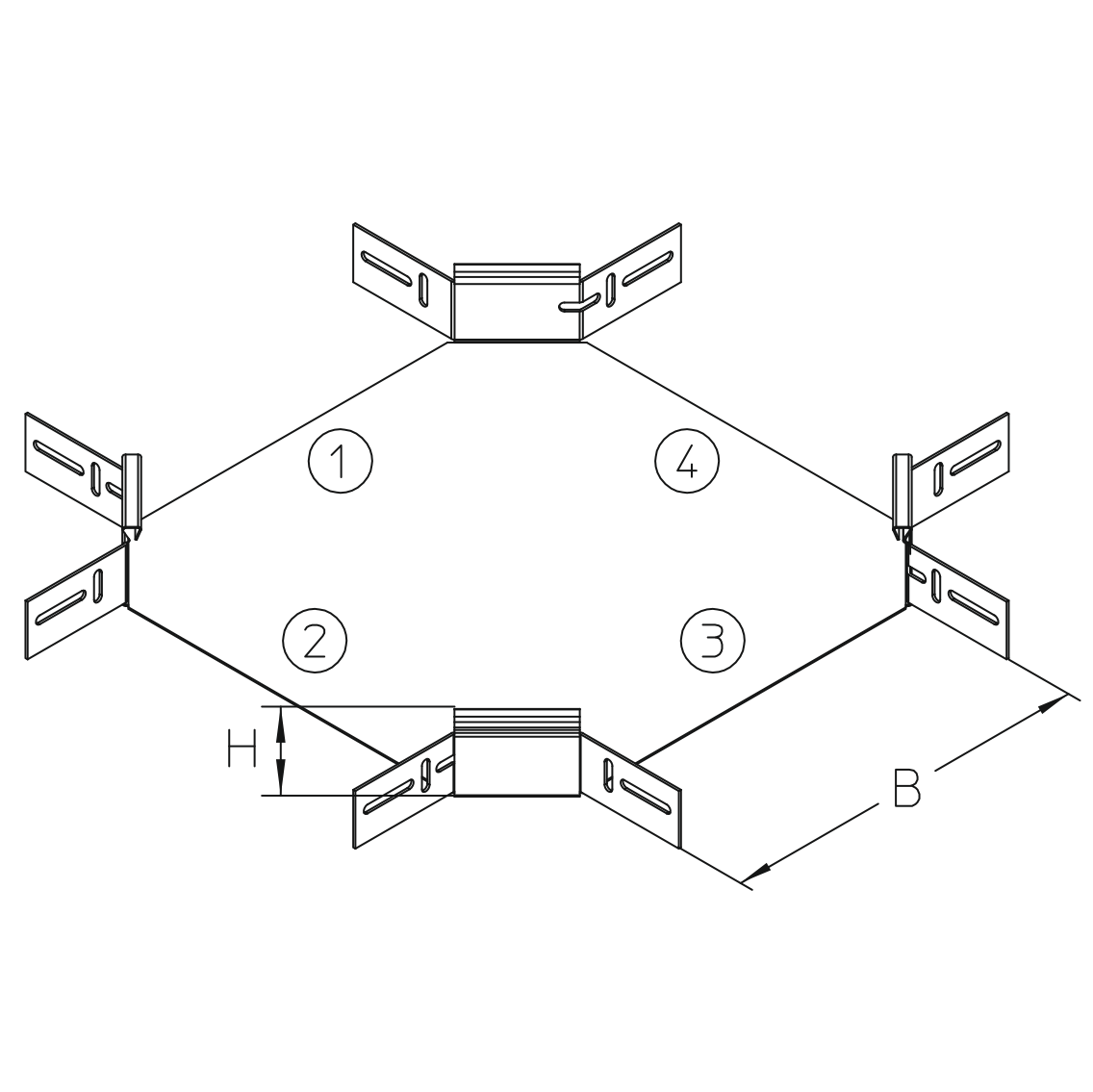

| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RIK 60-05S |
60
|
50
|
1,174
|
||
| RIK 60-10-05S |
60
|
48
|
1,254
|
||
| RIK 60-10S |
60
|
100
|
1,359
|
||
| RIK 60-20-10S |
60
|
98
|
1,569
|
||
| RIK 60-20S |
60
|
200
|
1,878
|
||
| RIK 60-30-20S |
60
|
198
|
2,186
|
||
| RIK 60-30S |
60
|
300
|
2,592
|
Hot-dip galvanized, according to BS 729 (EN ISO 1461)
| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RIK 60-05F |
60
|
50
|
1,260
|
||
| RIK 60-10-05F |
60
|
48
|
1,346
|
||
| RIK 60-10F |
60
|
100
|
1,458
|
||
| RIK 60-20-10F |
60
|
98
|
1,683
|
||
| RIK 60-20F |
60
|
200
|
2,014
|
||
| RIK 60-30-20F |
60
|
198
|
2,343
|
||
| RIK 60-30F |
60
|
300
|
2,778
|
Stainless steel, according to ASTM 304 / BS 304 S 3
| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RIK 60-05E |
60
|
50
|
1,023
|
||
| RIK 60-10-05E |
60
|
48
|
1,104
|
||
| RIK 60-10E |
60
|
100
|
1,210
|
||
| RIK 60-20-10E |
60
|
98
|
1,421
|
||
| RIK 60-20E |
60
|
200
|
1,731
|
||
| RIK 60-30-20E |
60
|
198
|
2,041
|
||
| RIK 60-30E |
60
|
300
|
2,450
|
