Łuk korytka instalacyjnego, wysokość=60 mm.
Łuk korytka instalacyjnego umożliwiający zmianę kierunku trasy kablowej o 90°. Łuk posiada zintegrowane łączniki. W komplecie śruby i nakrętki montażowe.
RIB 60
-
Karta Katalogowa RIB 60_PL
pdf | 60.42 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

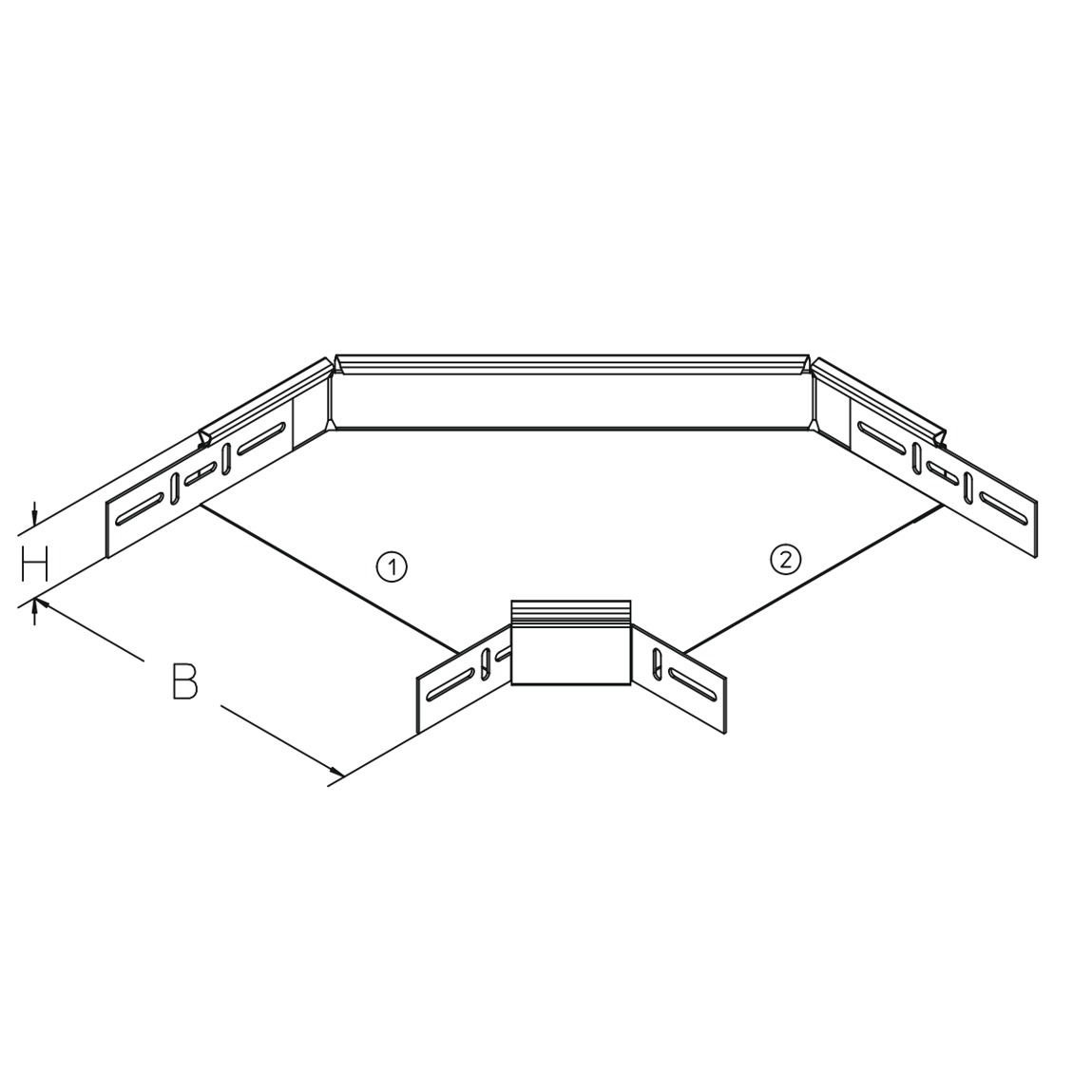

| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RIB 60-10S |
60
|
100
|
0,731
|
||
| RIB 60-20S |
60
|
200
|
1,183
|
||
| RIB 60-30S |
60
|
300
|
1,863
|
Hot-dip galvanized, according to BS 729 (EN ISO 1461)
| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RIB 60-05F |
60
|
50
|
0,556
|
||
| RIB 60-10F |
60
|
100
|
0,784
|
||
| RIB 60-20F |
60
|
200
|
1,268
|
||
| RIB 60-30F |
60
|
300
|
1,995
|
Stainless steel, according to ASTM 304 / BS 304 S 3
| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RIB 60-05E |
60
|
50
|
0,451
|
||
| RIB 60-10E |
60
|
100
|
0,856
|
||
| RIB 60-20E |
60
|
200
|
1,311
|
||
| RIB 60-30E |
60
|
300
|
1,977
|
