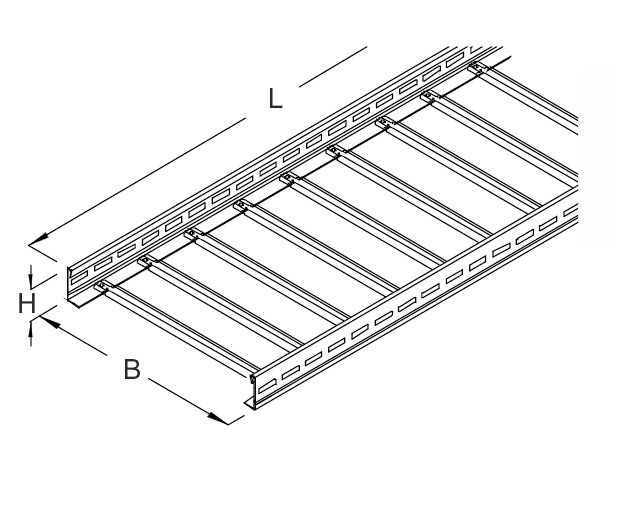

Drabinka kablowa, wysokość=60 mm.

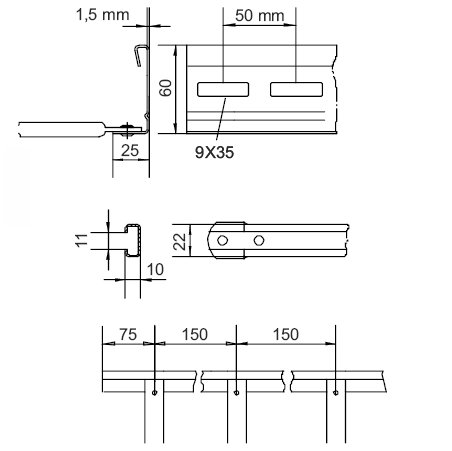

Drabinka kablowa wyposażona w perforowane wzdłużnice oraz nitowane szczeble. Szczeble wykonane są z profilu w kształcie litery „C”. Drabinka utrzymuje ciągłość potencjału zgodnie z DIN EN 61537.
Produkt dostępny jest również w wykonaniu ze stali kwasoodpornej, materiał 1.4571 / 1.4404 (V4A).
| Name | H[mm] | B[mm] | L[mm] | A[cm2] | Qlk[kN/m] | G[kg] | |
|---|---|---|---|---|---|---|---|
| LG-BSN 60-10-3S |
60
|
100
|
3000
|
51
|
0,15
|
7,51
|
|
| LG-BSN 60-20-3S |
60
|
200
|
3000
|
103
|
0,29
|
8,38
|
|
| LG-BSN 60-30-3S |
60
|
300
|
3000
|
155
|
0,44
|
9,24
|
|
| LG-BSN 60-40-3S |
60
|
400
|
3000
|
208
|
0,58
|
10,10
|
|
| LG-BSN 60-50-3S |
60
|
500
|
3000
|
260
|
0,73
|
10,97
|
|
| LG-BSN 60-60-3S |
60
|
600
|
3000
|
313
|
0,88
|
11,83
|
|
| LG-BSN 60-10S |
60
|
100
|
6000
|
51
|
0,15
|
15,03
|
|
| LG-BSN 60-20S |
60
|
200
|
6000
|
103
|
0,29
|
16,76
|
|
| LG-BSN 60-30S |
60
|
300
|
6000
|
155
|
0,44
|
18,48
|
|
| LG-BSN 60-40S |
60
|
400
|
6000
|
208
|
0,58
|
20,21
|
|
| LG-BSN 60-50S |
60
|
500
|
6000
|
260
|
0,73
|
21,94
|
|
| LG-BSN 60-60S |
60
|
600
|
6000
|
313
|
0,88
|
23,66
|
| Name | H[mm] | B[mm] | L[mm] | A[cm2] | Qlk[kN/m] | G[kg] | |
|---|---|---|---|---|---|---|---|
| LG-BSN 60-10-3F |
60
|
100
|
3000
|
51
|
0,15
|
8,08
|
|
| LG-BSN 60-20-3F |
60
|
200
|
3000
|
103
|
0,29
|
9,02
|
|
| LG-BSN 60-30-3F |
60
|
300
|
3000
|
155
|
0,44
|
9,97
|
|
| LG-BSN 60-40-3F |
60
|
400
|
3000
|
208
|
0,58
|
10,91
|
|
| LG-BSN 60-50-3F |
60
|
500
|
3000
|
260
|
0,73
|
11,86
|
|
| LG-BSN 60-60-3F |
60
|
600
|
3000
|
313
|
0,88
|
12,81
|
|
| LG-BSN 60-10F |
60
|
100
|
6000
|
51
|
0,15
|
16,15
|
|
| LG-BSN 60-20F |
60
|
200
|
6000
|
103
|
0,29
|
18,04
|
|
| LG-BSN 60-30F |
60
|
300
|
6000
|
155
|
0,44
|
19,94
|
|
| LG-BSN 60-40F |
60
|
400
|
6000
|
208
|
0,58
|
21,83
|
|
| LG-BSN 60-50F |
60
|
500
|
6000
|
260
|
0,73
|
23,72
|
|
| LG-BSN 60-60F |
60
|
600
|
6000
|
313
|
0,88
|
25,61
|
| Name | H[mm] | B[mm] | L[mm] | A[cm2] | Qlk[kN/m] | G[kg] | |
|---|---|---|---|---|---|---|---|
| LG-BSN 60-10-3E |
60
|
100
|
3000
|
51
|
0,15
|
7,51
|
|
| LG-BSN 60-20-3E |
60
|
200
|
3000
|
103
|
0,29
|
8,38
|
|
| LG-BSN 60-30-3E |
60
|
300
|
3000
|
155
|
0,44
|
9,24
|
|
| LG-BSN 60-40-3E |
60
|
400
|
3000
|
208
|
0,58
|
10,10
|
|
| LG-BSN 60-50-3E |
60
|
500
|
3000
|
260
|
0,73
|
10,97
|
|
| LG-BSN 60-60-3E |
60
|
600
|
3000
|
313
|
0,88
|
11,83
|
|
| LG-BSN 60-10E |
60
|
100
|
6000
|
51
|
0,15
|
15,03
|
|
| LG-BSN 60-20E |
60
|
200
|
6000
|
103
|
0,29
|
16,76
|
|
| LG-BSN 60-30E |
60
|
300
|
6000
|
155
|
0,44
|
18,48
|
|
| LG-BSN 60-40E |
60
|
400
|
6000
|
208
|
0,58
|
20,21
|
|
| LG-BSN 60-50E |
60
|
500
|
6000
|
260
|
0,73
|
21,94
|
|
| LG-BSN 60-60E |
60
|
600
|
6000
|
313
|
0,88
|
23,66
|
